HD-16

  • 2.4 Megapixel Sony Exmor sensor

  • Completely self contained

  • 10:1 zoom lens

  • No ‘Rolling Shutter’ effect

  • RCP Control (with RCP3)

  • Infra-Red sensitive

  • Genlock input

  • IP65 (with clear filter)

  • Tally Light Top or Bottom mounting

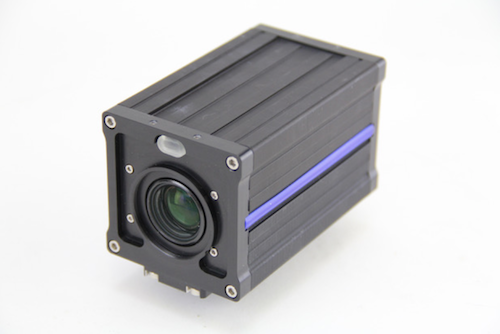

The HD-16 is a miniature, full HD, remote camera with all the BR Remote features of usability, connectivity and control. It is packaged in a single housing and requires just power and RS485 data. The RS485 data can be sent up to 1km over a balanced audio cable or CAT5.

The 10-bit HDSDI output is FULL HD, derived from 12bit processing, not an inferior signal. It is timed accurately to mitigate the ‘rolling shutter’ effect and to achieve low jitter.

The camera has a 37mm filter thread and all functions are controlled remotely via a simple protocol. It matches perfectly our U3 Remote Heads and MiniPos2. It can also be used in a stand-alone mode, or with other control systems.

2 Remote Camera Panels are available which can control up to 4, 8 or 99 cameras on a system. RCPs can be connected directly to the camera, or via a pan/tilt joystick. When routed via a pan/tilt joystick, the CCU data is multiplexed with the pan, tilt, zoom & focus data. Each camera can be set to its own ident, 1 – 99.



We have also incorporated both Genlock and our ‘Semi-Auto Smooth Iris’ both of which further improve the usability of the camera.

For further information about HD-16 download the HD-16 Brochure. If you would like to know more about HD-16 please get in touch via admin@br-remote.com or call us on +44 (0) 1590 622 440.
